13
Sizes
Sizes
<< Click and drag image to spin >>
| SKU | Price (Ex Vat) | Colour | Tread | Platform Height | Overall Dimension | Weight | Select |
|---|---|---|---|---|---|---|---|
| KTD05Y | 983.29 | Yellow | 5 | 1000mm | 2000 x 910 x 2100mm | 75kg | . |
| KTD05B | 983.29 | Blue | 5 | 1000mm | 2000 x 910 x 2100mm | 75kg | . |
| KTD06Y | 1081.63 | Yellow | 6 | 1200mm | 2200 x 910 x 2300mm | 98kg | . |
| KTD06B | 1081.63 | Blue | 6 | 1200mm | 2200 x 910 x 2300mm | 98kg | . |
| KTD07Y | 1187.46 | Yellow | 7 | 1400mm | 2400 x 910 x 2500mm | 120kg | . |
| KTD07B | 1187.46 | Blue | 7 | 1400mm | 2400 x 910 x 2500mm | 120kg | . |
| KTD08Y | 1291.63 | Yellow | 8 | 1600mm | 2600 x 1080 x 2700mm | 145kg | . |
| KTD08B | 1291.63 | Blue | 8 | 1600mm | 2600 x 1080 x 2700mm | 145kg | . |
| KTD09Y | 1416.63 | Yellow | 9 | 1800mm | 2800 x 1080 x 2900mm | 170kg | . |
| KTD09B | 1416.63 | Blue | 9 | 1800mm | 2800 x 1080 x 2900mm | 170kg | . |
Please swipe across the table to view extra dimensions.

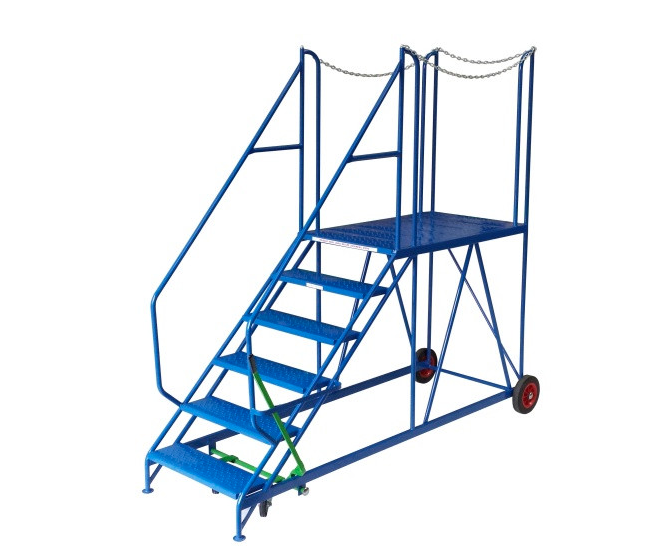

Klime-Ezee Truck Dock Steps
Truck Dock Steps have a shallow 48 degree rake and treads at 200mm centres. With a safe working load independently tested to 500kg, large platform (1200mm x 700mm) and access off all three sides, these truck dock steps are ideal for loading and unloading lorries. All models are braked by use of an integral ascent safety bar. When the safety bar is pushed back, the wheels are automatically raised stabilising the steps and allowing access. All steps have a tough powder coated finish, in either yellow or blue, for long lasting protection.
Please note, this product is also available in Red, Green, Yellow, Grey and Orange, please contact us to request this.
Individual product specifications are in the table above.
| Material | Steel |
| Class Rating | EN131-2 (Professional) |
| Number of Sections | 1 Section (Single) |
| Safe Working Load | 500kg (78st 7lb) |
| Lead Time | 8 - 9 Weeks |
