Ceiling Height | 2.64 - 3.50m |
---|---|
Hatch Size Reqd | 4 sizes available |
Junior V Concertina Aluminium Loft Ladder
SKU | Price (Ex Vat) | Treads | Max Ceiling Height | Max Load | Opening Size | Select |
---|---|---|---|---|---|---|
LSDJC9 | 1020.79 | 9 | 2.5m | 200Kg | 620 x 600mm | . |
LSDJC10 | 1066.63 | 10 | 2.79m | 200Kg | 670 x 600mm | . |
LSDJC11 | 1114.96 | 11 | 3.09m | 200Kg | 750 x 600mm | . |
LSDJC12 | 1161.63 | 12 | 3.39m | 200Kg | 830 x 550mm | . |
Please swipe across the table to view extra dimensions.

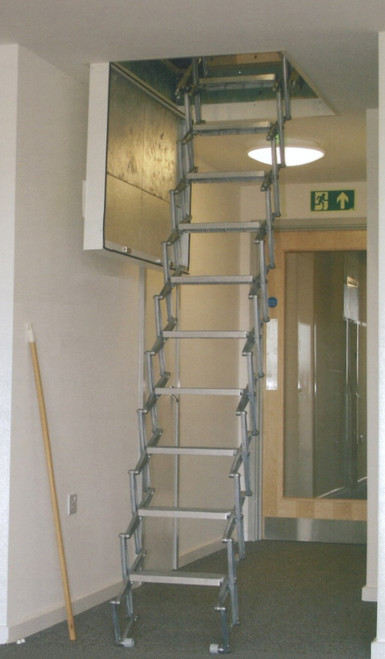

This heavy duty junior aluminium loft ladder has all the strength of a commercial unit but with the freedom and flexibility of fitting to your existing hatch. Desgined in Germany, the junior is the embodiment of simplistic, high-end German design. The ladder is availiable in 4 sizes to suit a floor to floor mounting point up to 3390mm. The unit is ready to fit straight into your existing opening or to a masonry. The ladder is made from die-cast aluminium and uses an integral spring hardware system for ease of operation. It comes supplied with a timber backboard measuring 580x200mm. The backboard is ready to be fixed onto joist material just above the trapdoor hinges. *Please note that Hatch is not included*
Looking for additional stability and security when using the ladder then we suggest looking at the telescopic handrail which can be reduced in length if it is causing an obstruction on your loft hatch. Also the handrail comes complete with its own fixings. It is essential that your concertina loft ladder must have the 3 mounting points to enable the Telescopic Handrail to be fitted.
The Metal Loft Exit Grab Rail is a helpful addition to your loft application as it provides you with support when entering and exiting your loft. Available in either black or white power coated finish, it comes with fixing plates and screws as standard.
Individual product specifications are in the table above.
Class Rating | EN14975 |
Material | Aluminium |
